GoDRIvE600 PRO is a complete solution for A600, to keep original Floppy drive and have FDD emulator.
GoDRIvE600 PRO lets you have both inside and switch between them on the go.
You can use either an FDD or floppy drive emulator, but NOT both at the same time.
Features:
- Both act as DF0:
- Keep original FDD in place

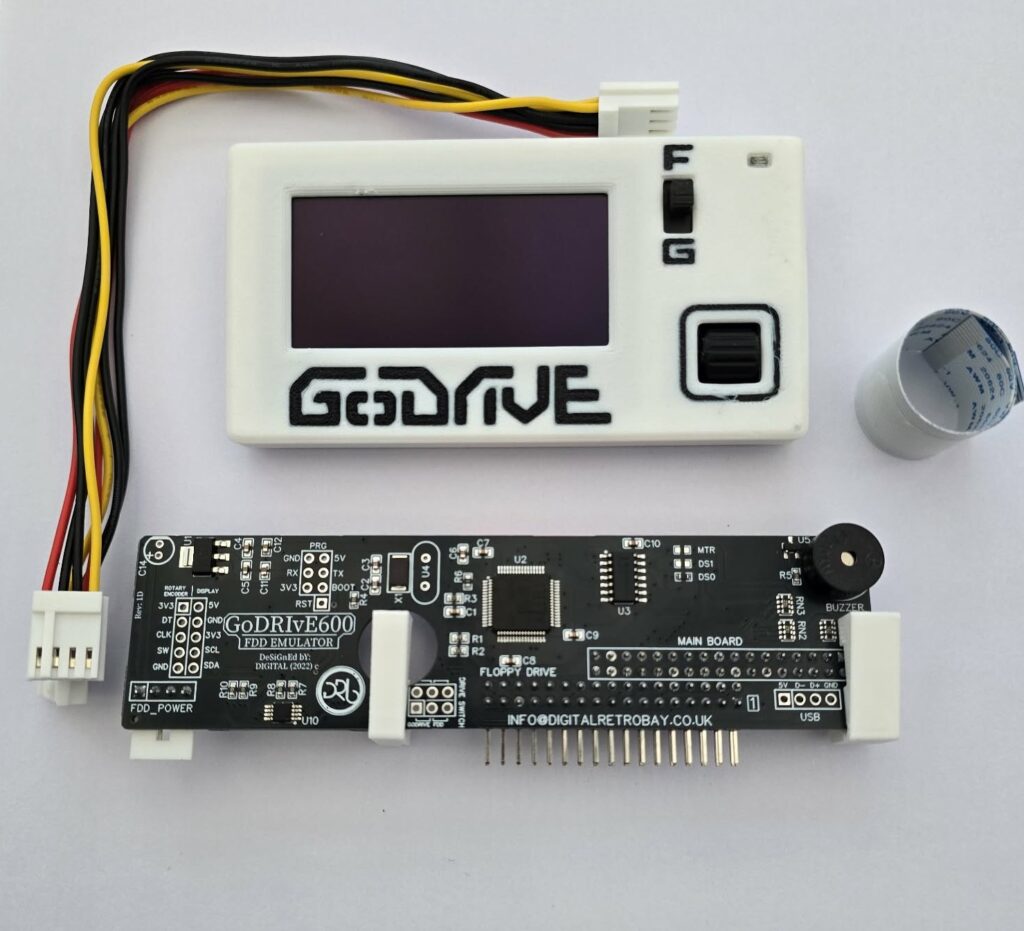

- Purposely designed PCB to fit on top of the 34 pin floppy drive connector and 4 pin power connector.
- Ability to switch between both (FDD and GoDRIvE600 PRO)on the go.
- Buzzer with amplifying circuit to hear emulated floppy sound (FF.cfg adjustable)
- No modification to the case needed.
- Used FFC ribbon instead of dupont connectors (much neater and easier to feed ribbon through case vents).

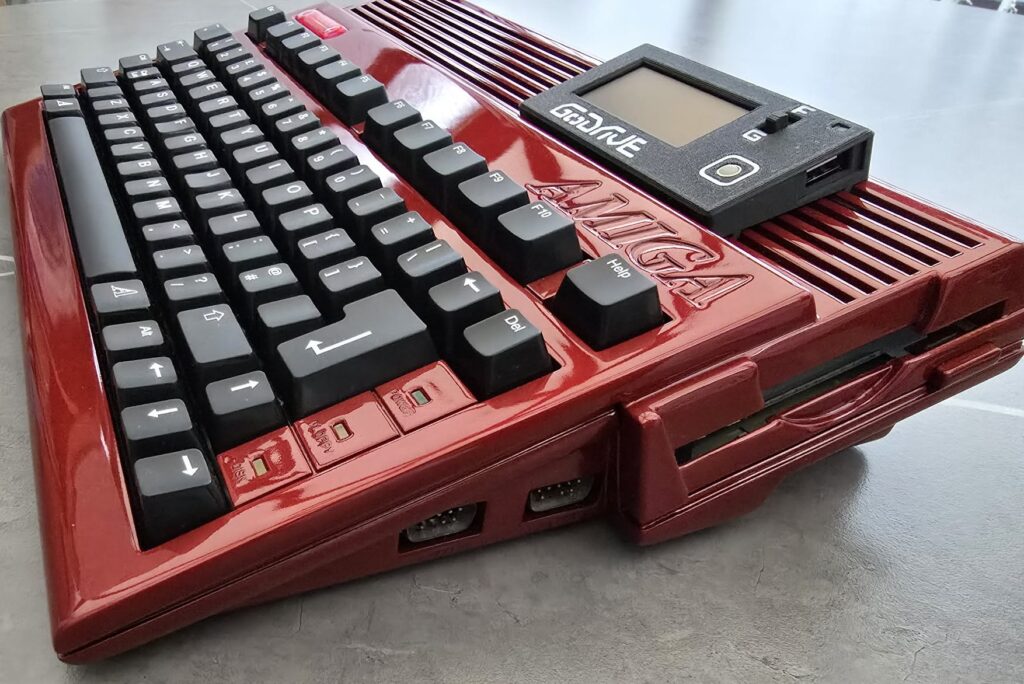

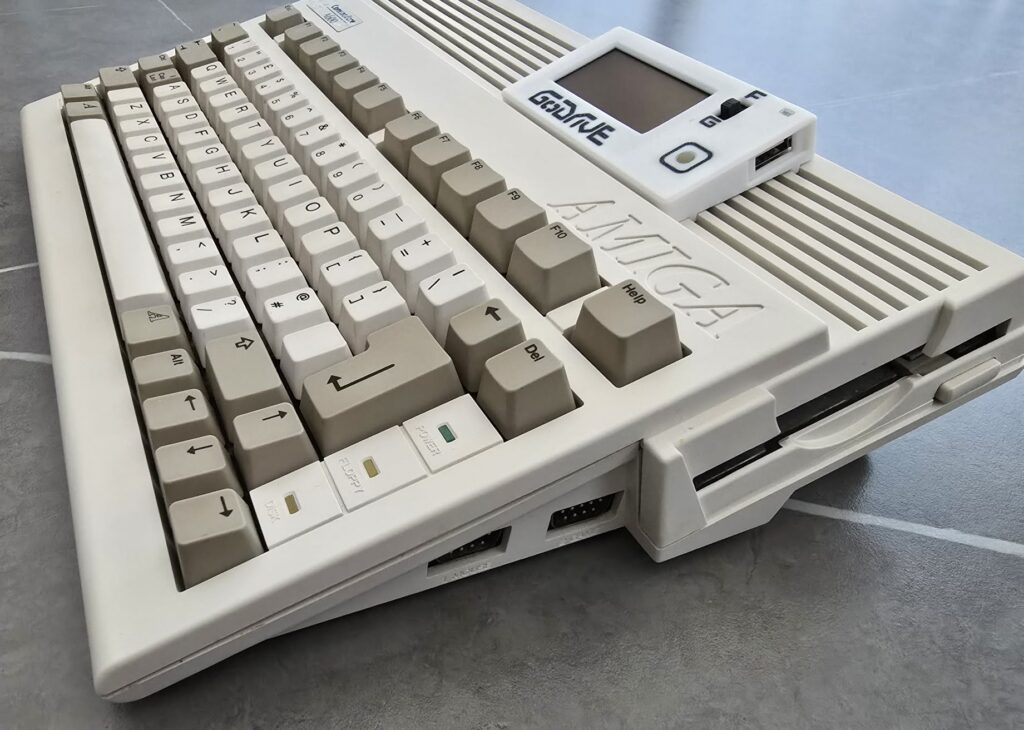

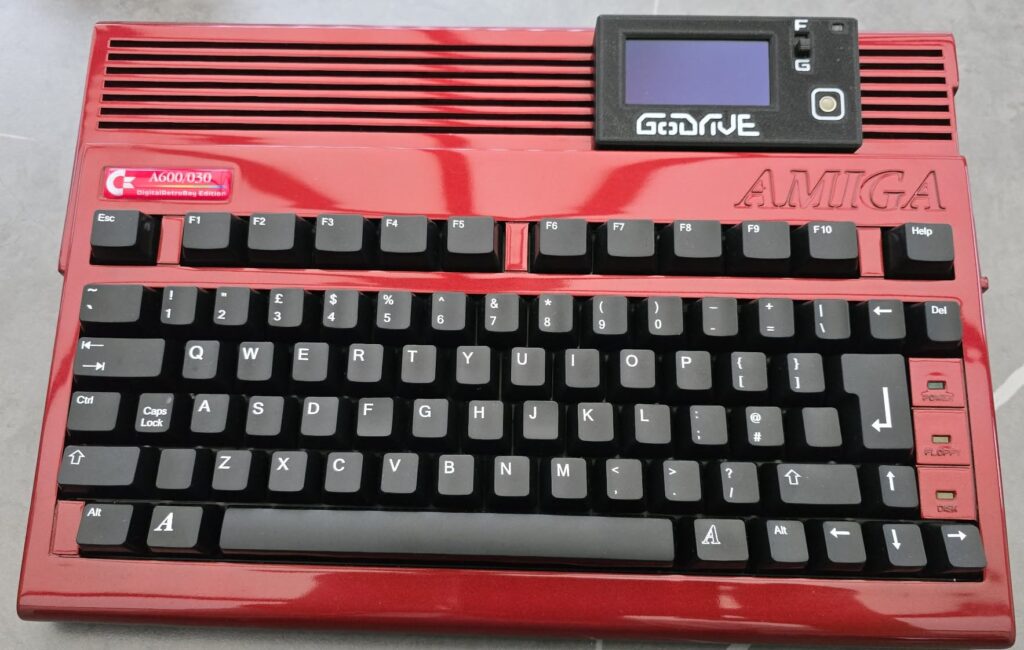

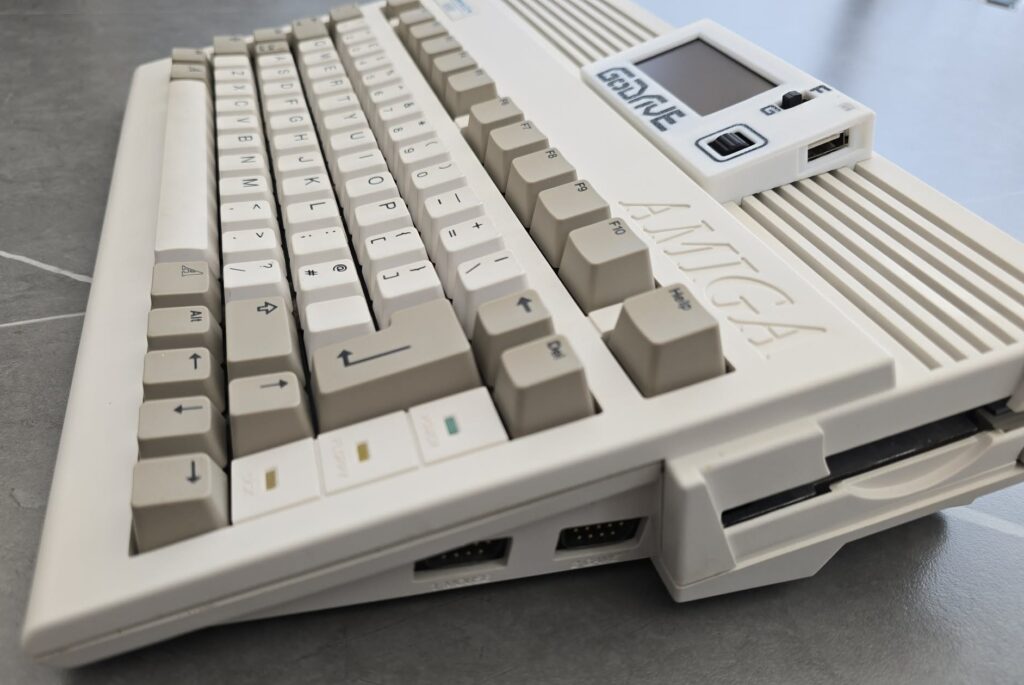

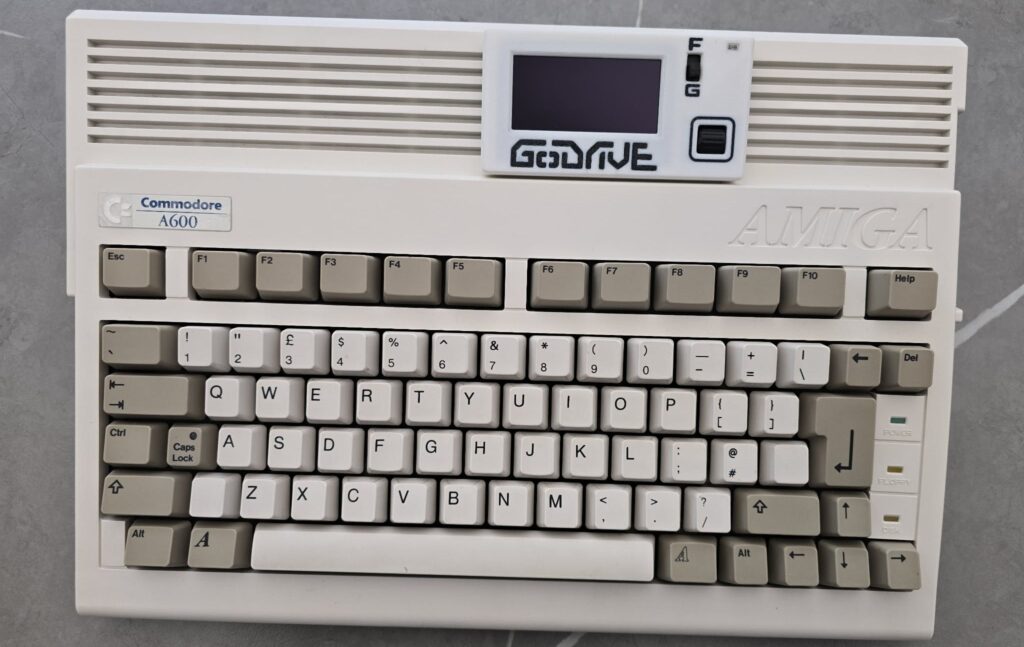

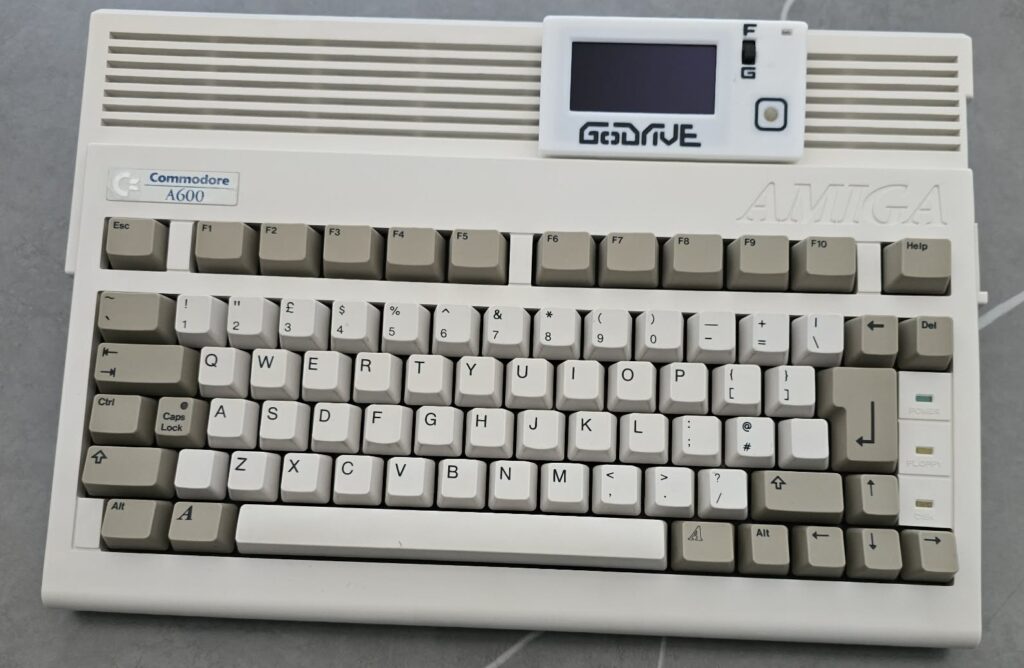

- Breakout box with much reduced thickness and all necessary features (Much larger 2.42” OLED screen in PRO version, trackball module with push button, activity LED light, drive selector and USB socket)
- Ball in trackball module is white back-lit while powered
- Uses latest Artery 435 IC, unless otherwise stated.

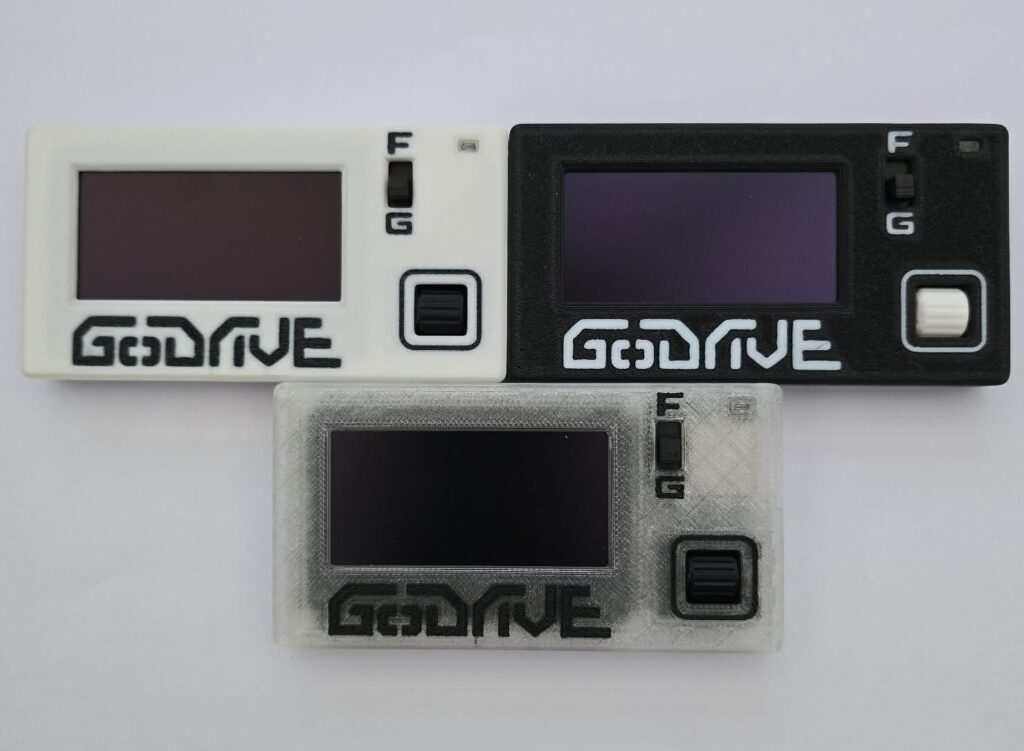

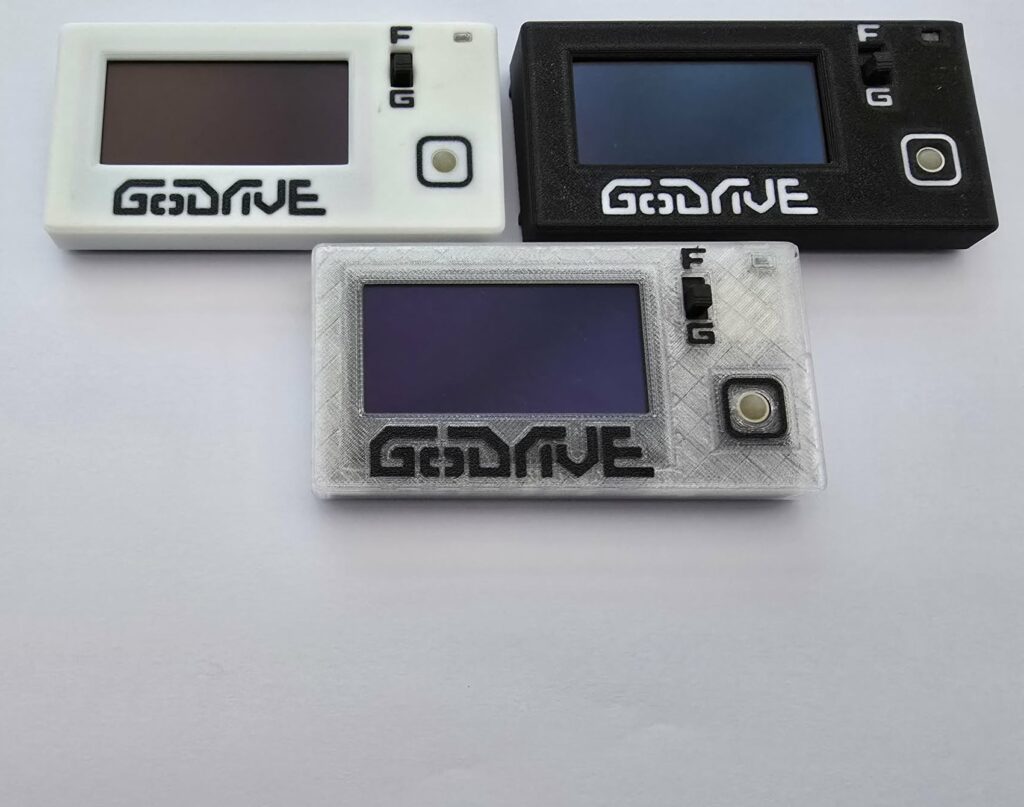

Breeakout box available in:White, Black, Translucent
In case you want to use your own add-ons (USB, Screen, Rotary encoder or trackball module) in different position instead of using breakout box, all necessary connections are on the PCB
(ask to have pins soldered when ordering)
Running recent FlashFloppy firmware, thanks to Keir Fraser.
https://github.com/keirf/flashfloppy – strongly recommend to visit his page for the latest firmware updates, “FF” config guide.
Also the ball itself might have a different shade of brown/beige depend what is available.
—Click here to download instructions—
—Click here for customization of the FlashFloppy firmware or to revert it to defaults—
Order one for your Amiga today.
They are currently very limited quantities so please contact for availability.
Priced at £100
