GoDRIvE1200 PRO
Posted on by

GoDRIvE1200 PRO is a complete solution for A1200(or A500/A500+), to keep original Floppy drive and have FDD emulator.

GoDRIvE1200 PRO lets you have both inside and switch between them on the go.
You can use either an FDD or floppy drive emulator, but NOT both at the same time.

Features:

  1. Both act as DF0:
  2. Keep original FDD in place

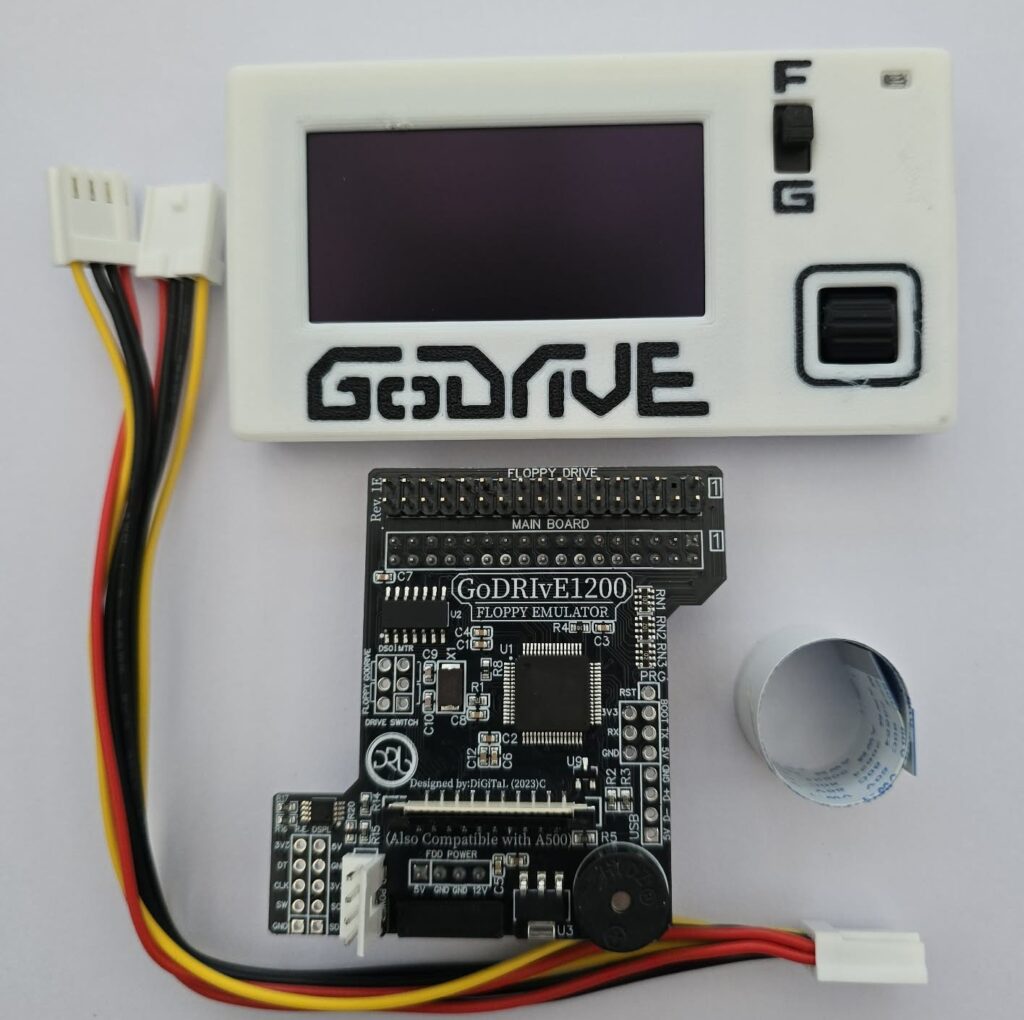

  3. Purposely designed PCB to fit on top of the 34 pin floppy drive connector and 4 pin power connector.
  4. Ability to switch between both (FDD and GoDRIvE1200 PRO)on the go.
  5. Buzzer with amplifying circuit to hear emulated floppy sound (FF.cfg adjustable)
  6. No modification to the case needed.
  7. Used FFC ribbon instead of dupont connectors (much neater and easier to feed ribbon through case vents).

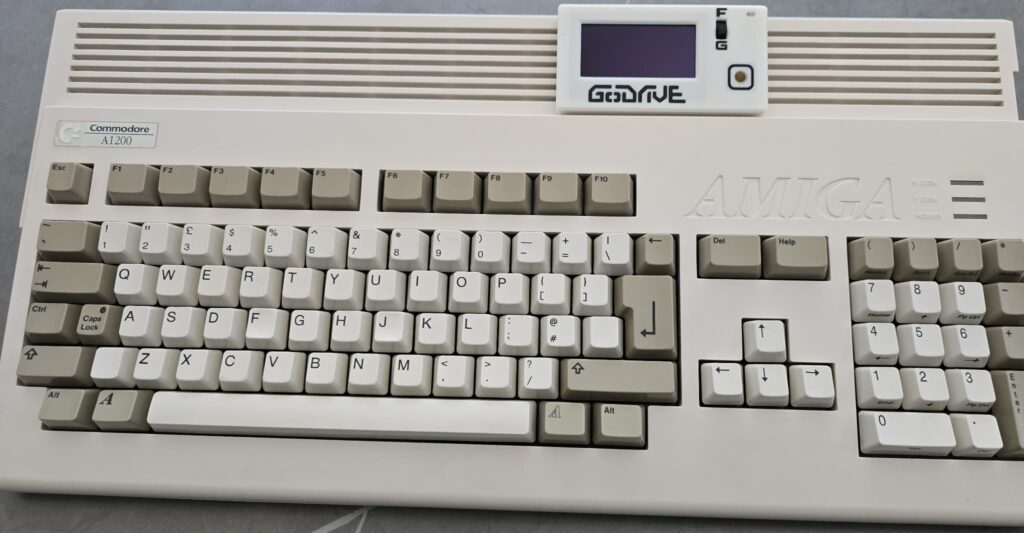

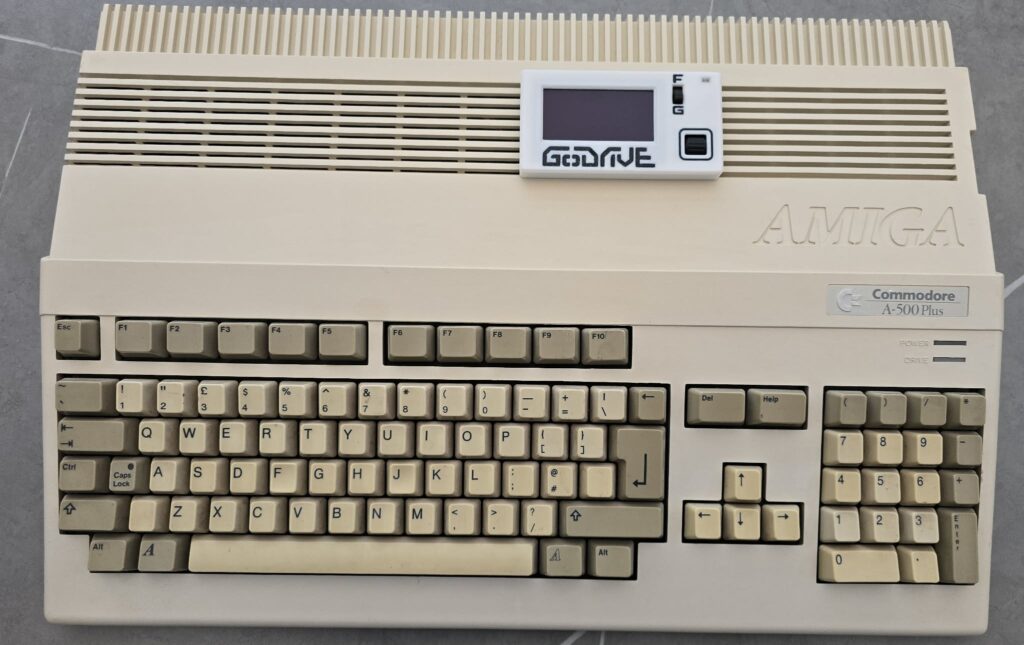

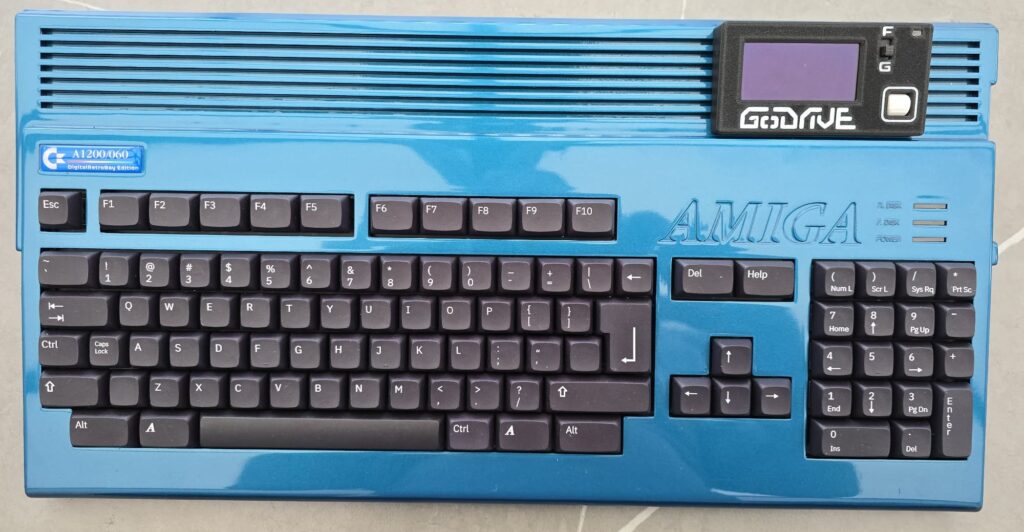

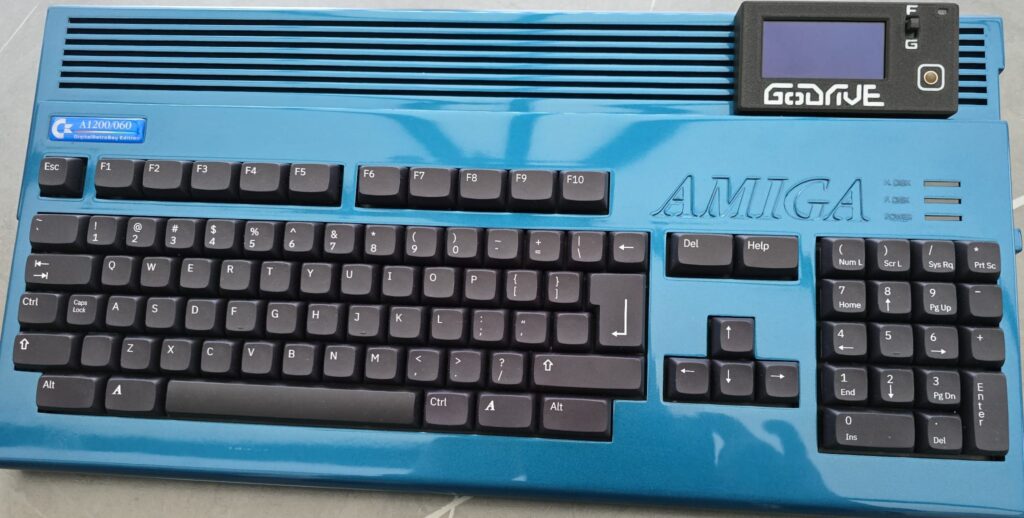

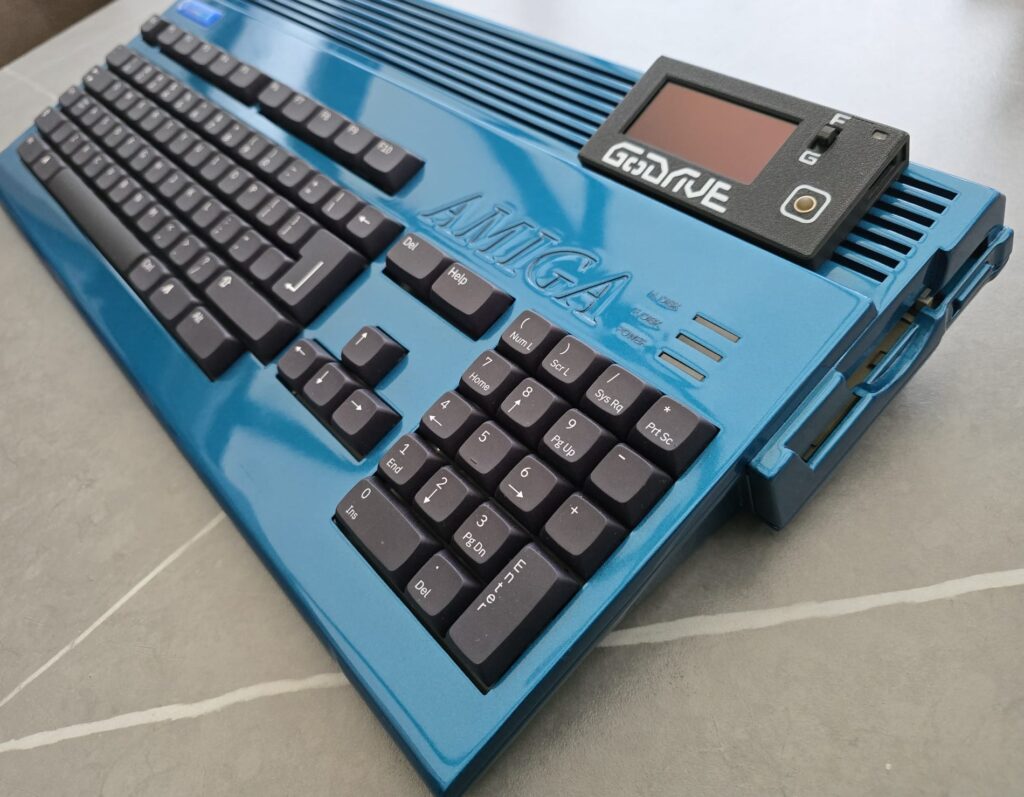

  8. Breakout box with much reduced thickness and all necessary features (Much larger 2.42” OLED screen in PRO version, rotary roller encoder with button, activity LED light, drive selector and USB socket)
  9. Uses latest Artery 435 IC, unless otherwise stated.

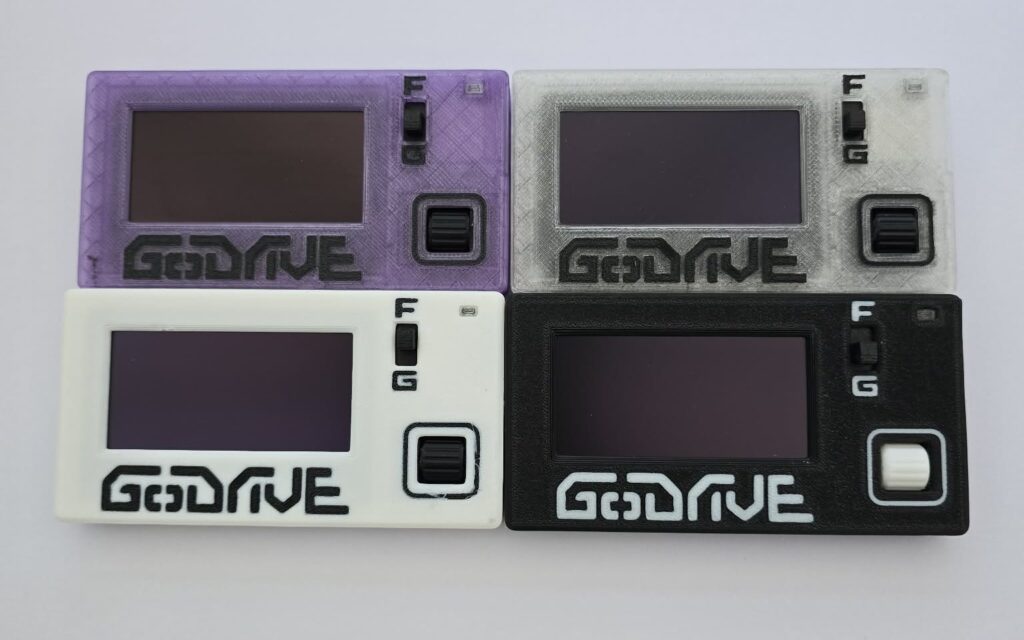

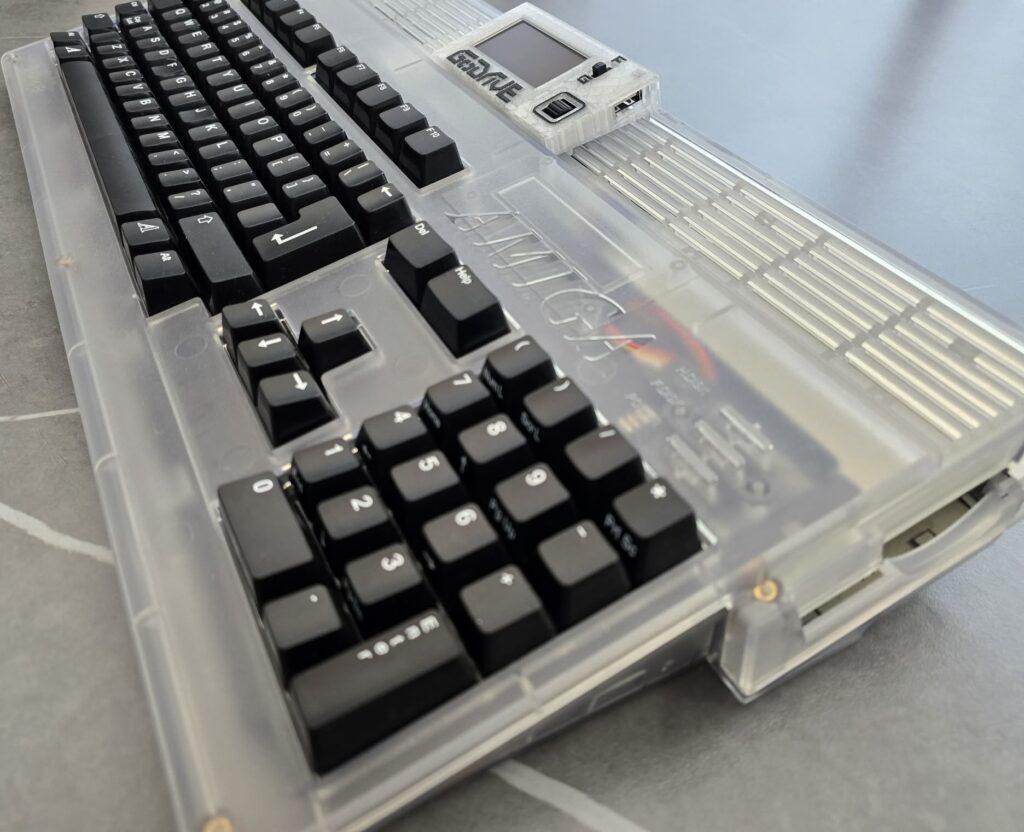

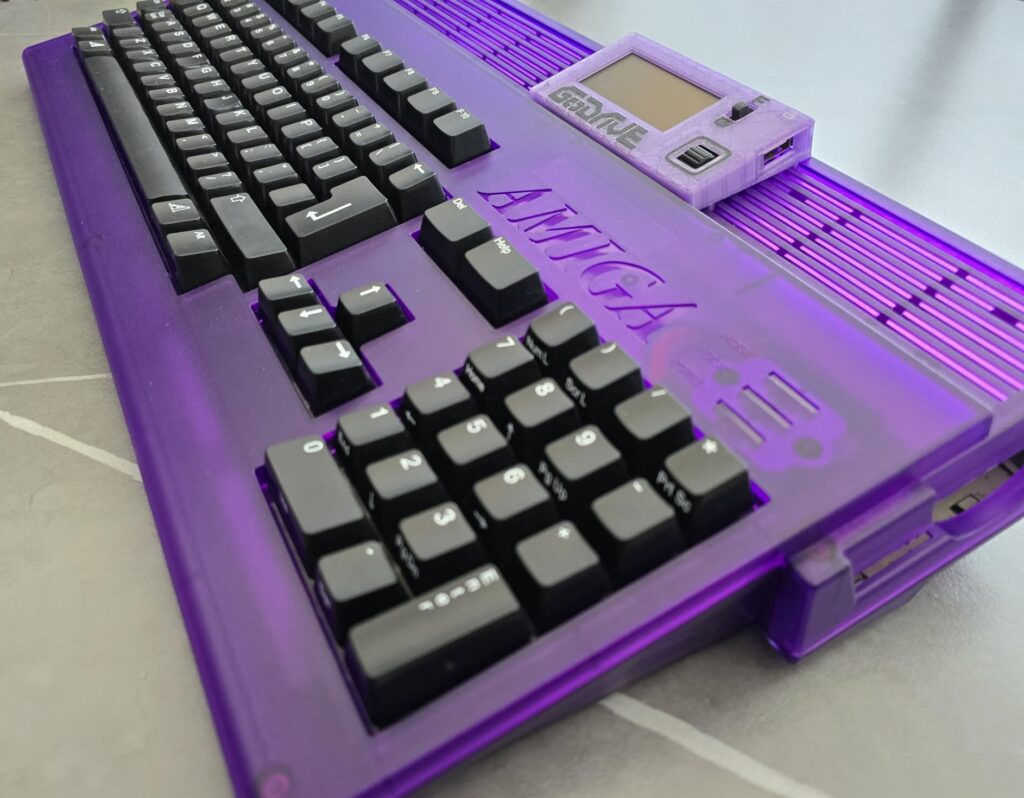

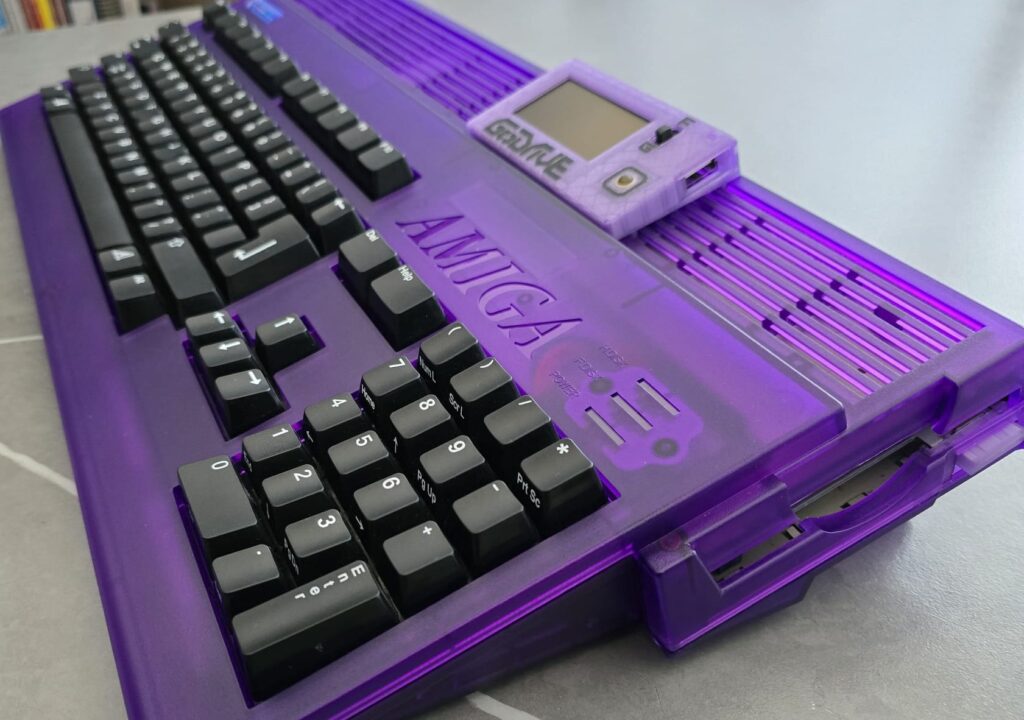

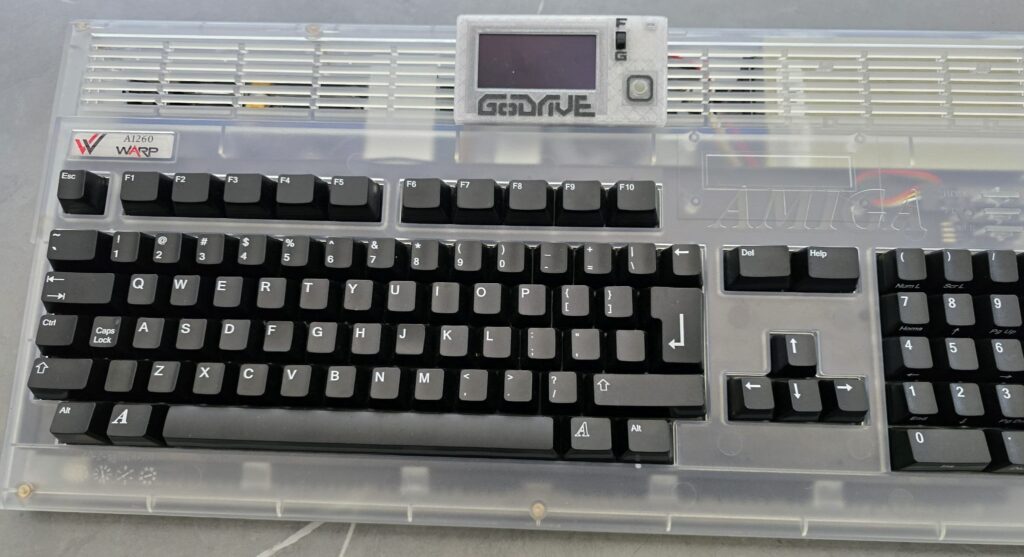

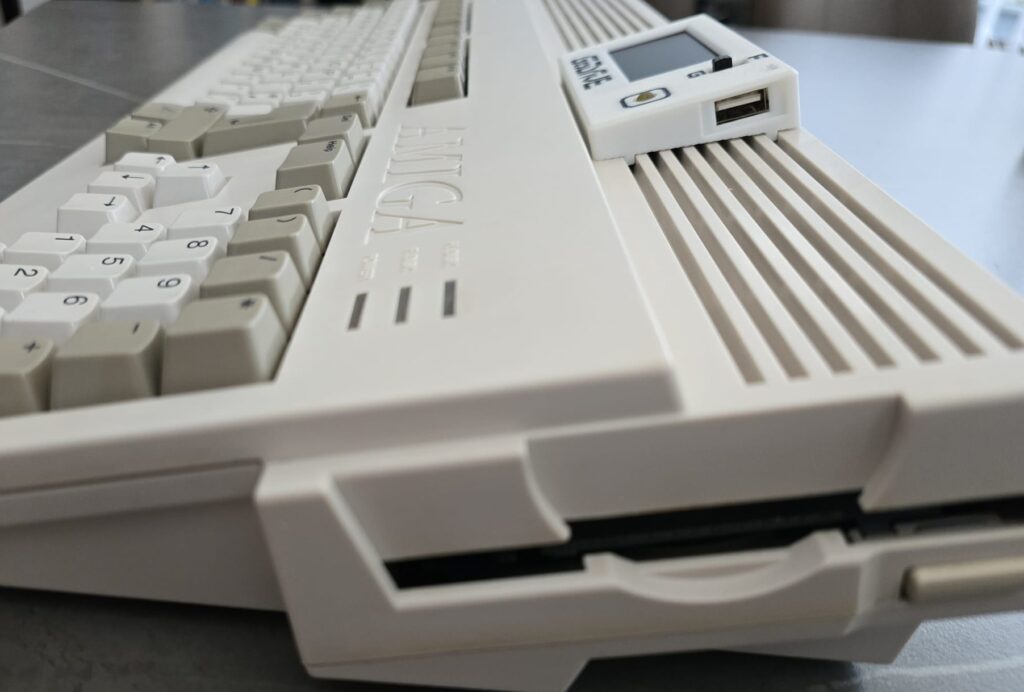

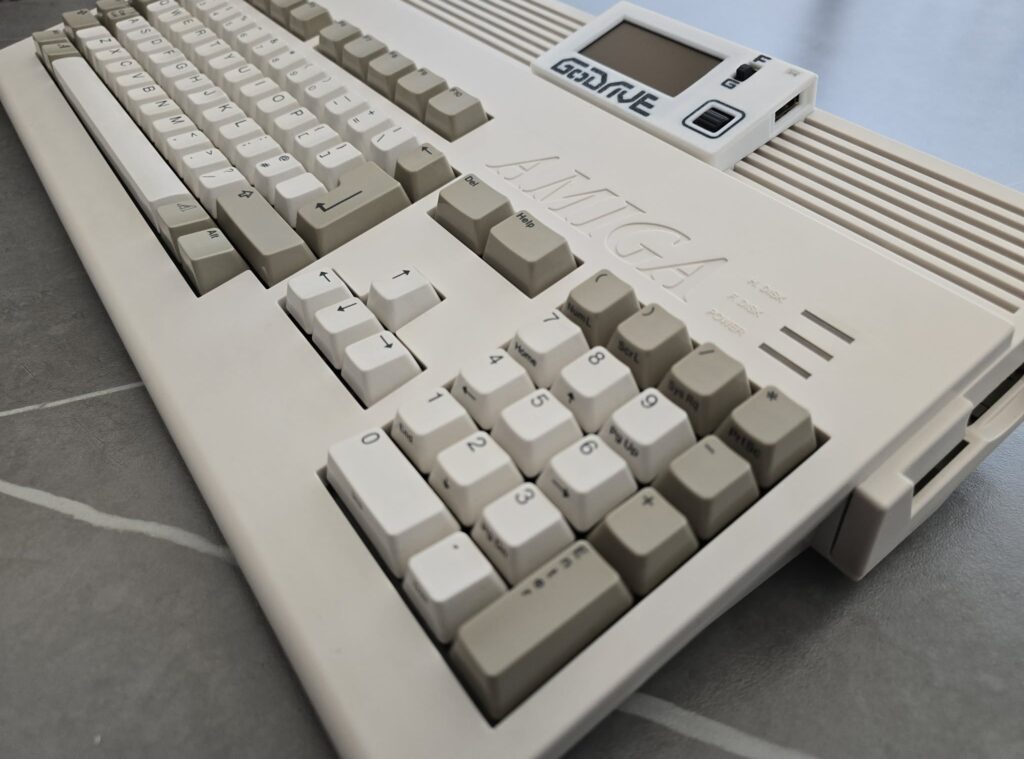

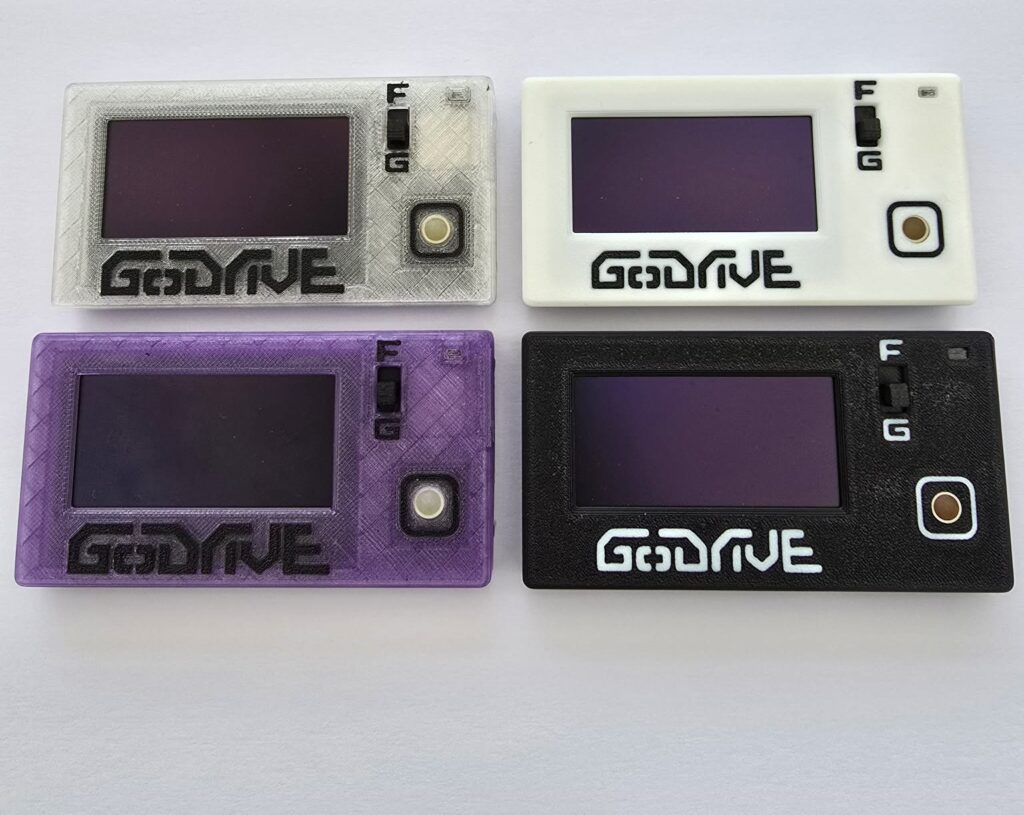

Breeakout box available in:White, Black, Translucent or Translucent Purple colour

In case you want to use your own add-ons (USB, Screen, Rotary encoder or trackball module) in different position instead of using breakout box, all necessary connections are on the PCB
(ask to have pins soldered when ordering)

Running recent FlashFloppy firmware, thanks to Keir Fraser.
https://github.com/keirf/flashfloppy – strongly recommend to visit his page for the latest firmware updates, “FF” config guide.

ESCOM AMIGA 1200 NOTICE:


If you are owner of ESCOM A1200, GoDRIvE1200(PRO) will not work without modyfying
mainboard and replacing PC-compatible FDD fitted, for Amiga compatible one.

To determine if you are the owner of above please check your A1200 case badge
(You’ll find it on the internet) or to make sure remove motherboard and check if
PIN 2 and PIN 34 are bridged with wire underneath FDD connector.

Search for “Amiga 1200 Escom Floppy Fix” to solve this problem.

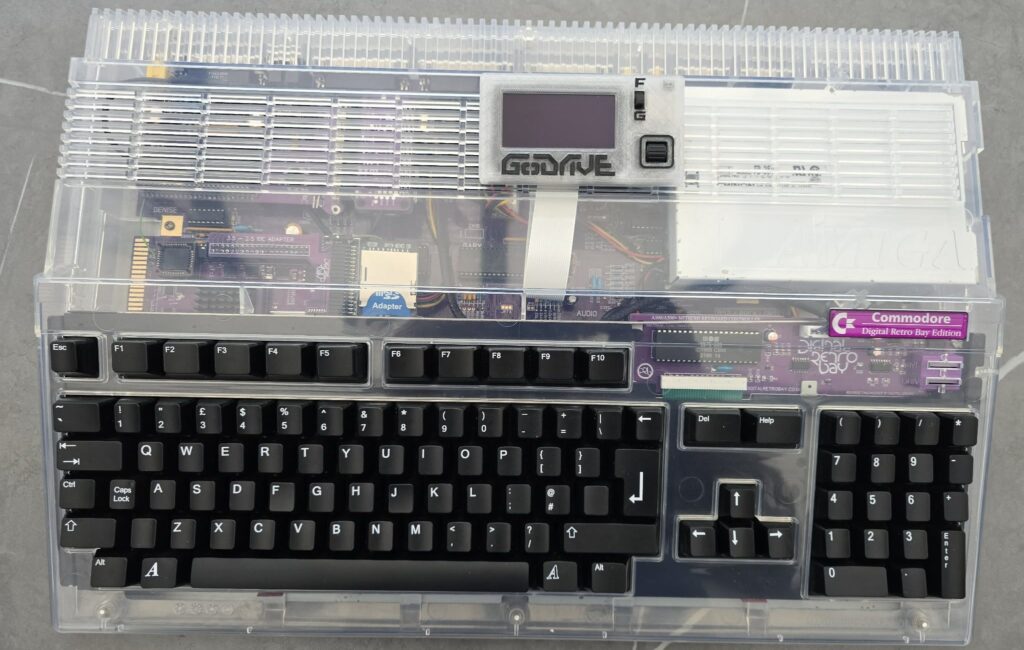

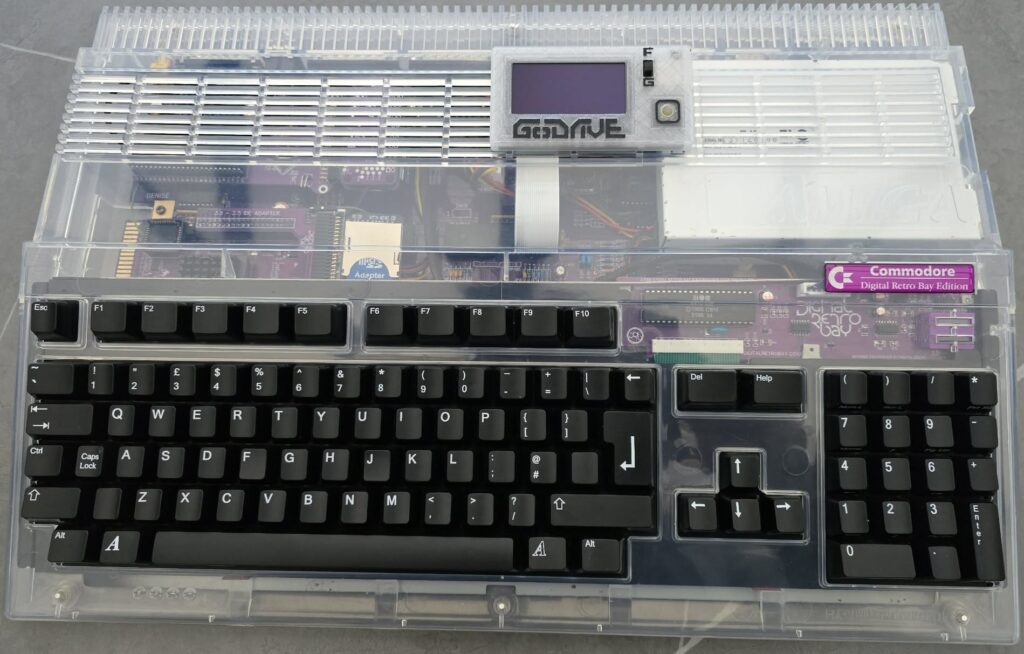

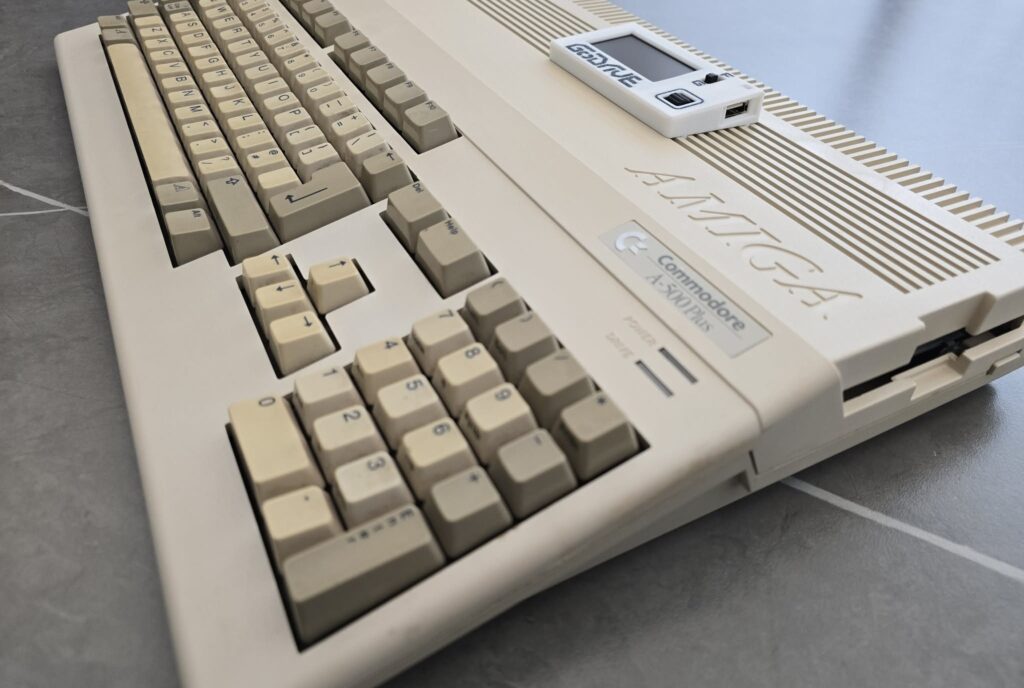

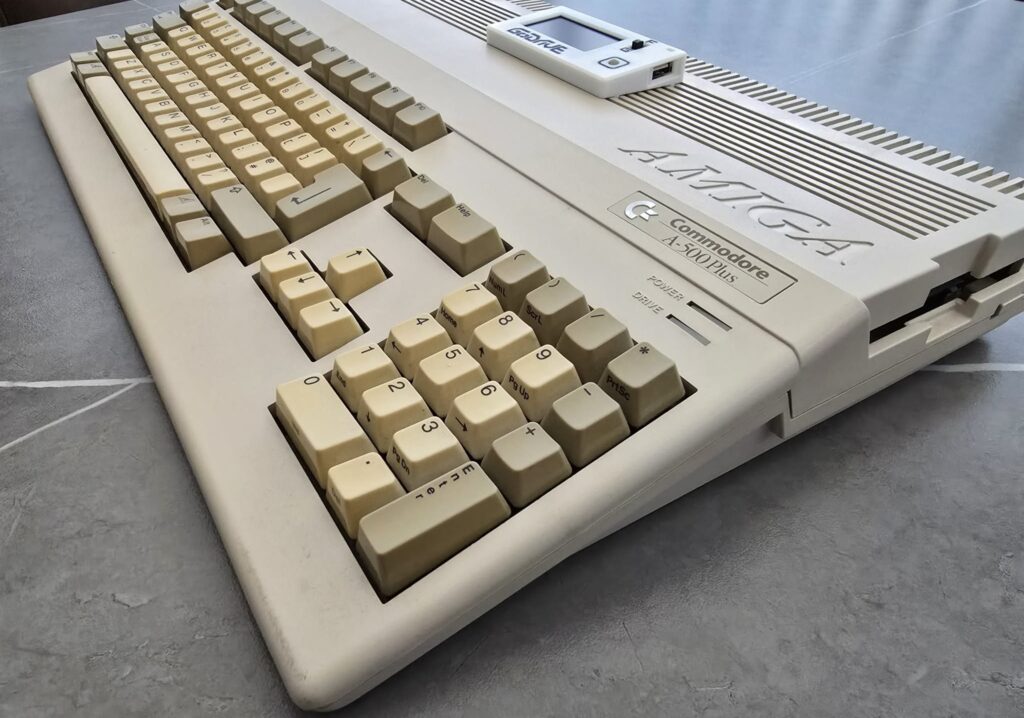

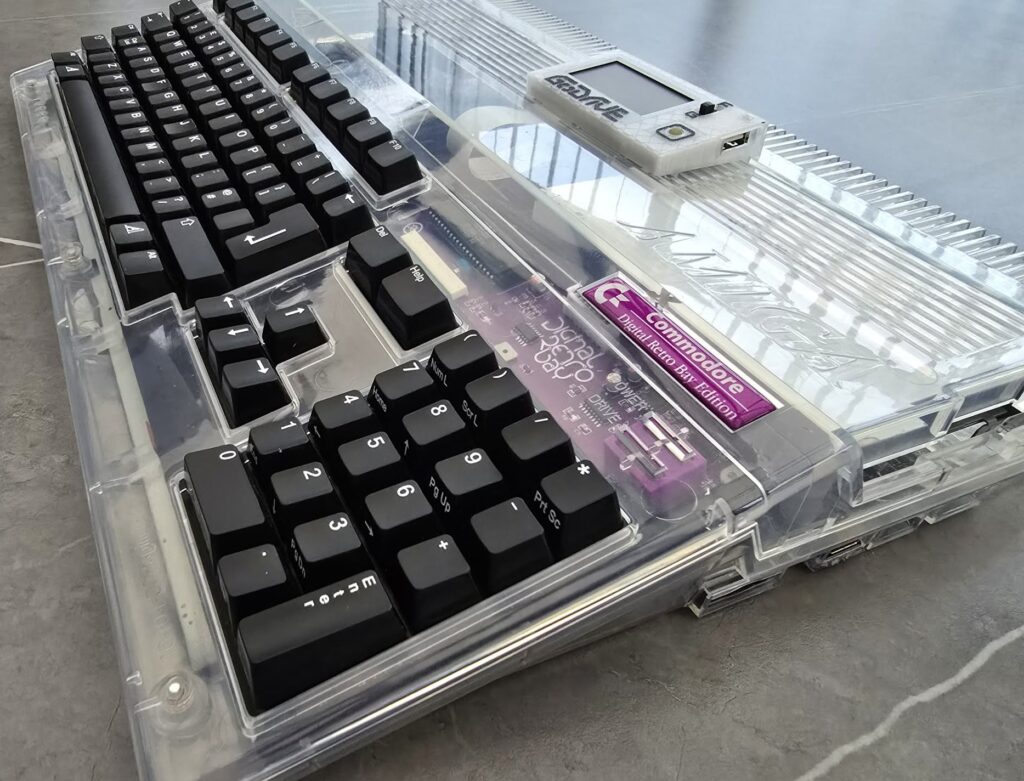

New Amiga A500 cases from A1200.net NOTICE:

If you planning on fitting Godrive1200 PRO on any of the new A500 cases, make sure you mention that while ordering as they are slighly different and need different brekout box!!!

—Click here to download instructions—

—Click here for customization of the FlashFloppy firmware or to revert it to defaults—

Order one for your Amiga today.

They are currently very limited quantities so please contact for availability.

Priced at £100
